Dome Cameras

• ICD-68E – Dome B&W Camera with Zoom Lens
• SID-300P – Dome Color Camera with Fixed Lens
• SID-400P – Dome Color Camera with Zoom Lens
• ICD-608P – Dome Color Camera with Zoom Lens
• ICD-609P – High Performance Day/Night Dome Camera
• ISD-A30 – Hyper Dynamic Dome Color Camera
• ISD-A35 – Hyper Wide Light Dynamic Dome Color Camera
• SID-600P – Dome Color Camera with Zoom Lens
• SID-605P-IR – Day/Night Dome Camera with Zoom Lens
• SID-635P-IR – Day/Night Dome Camera with Zoom Lens
• PCS-310P – Day/Night Mini-PTZ Dome Camera
• PCS-400P Series – Professional PTZ Dome Camera
• ICD-D1111 – High Resolution 600TVL Vandal Resistant IR Dome Camera

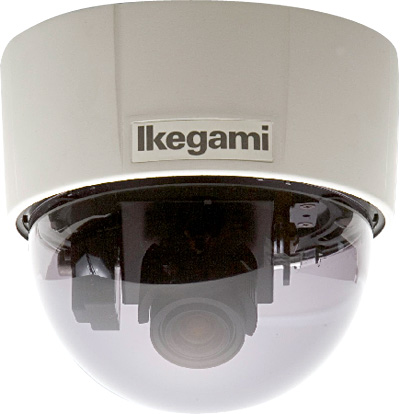

ICD-68E
Dome B&W Camera with Zoom Lens

• 1/3" IT CCD-Chip
• Resolution: 380 TVL
• Sensitivity: 0.3 Lux
• Aesthetic Appearance
• Integrated Varifocal Lens
• Optical Zoom x 2.3
• Lens Focal Length 2.6~6 mm
• CCIR Composite Video Output
• Built-in Automatic Gain Control
• Mirror Image Function Nor/Inv Switchable
• Backlight Compensation On/Off & Level Adjustable
• Power Supply: 24 VAC
• Specification

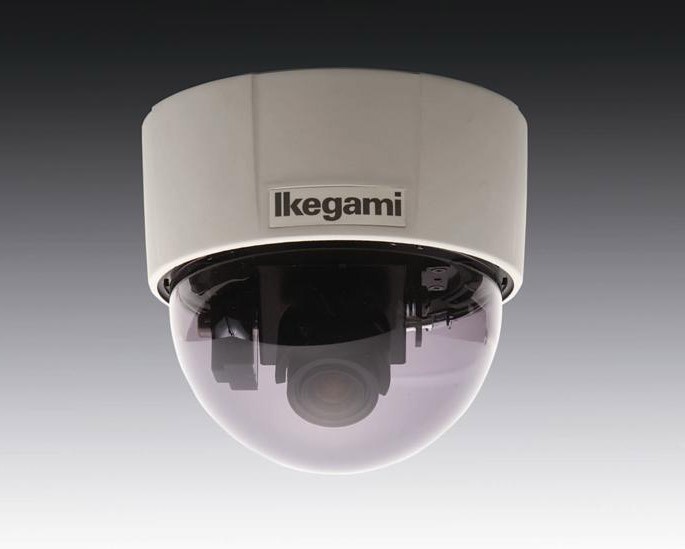

SID-300P
Dome Color Camera with Fixed Lens

• 1/4" IT CCD-Chip
• Resolution: 330 TVL
• Sensitivity: 3.2 Lux
• Compact Design
• Integrated Fixed Lens 2.9 mm
• PAL Composite Video Output
• Automatic Electronic Shutter
• Automatic White Balance
• Backlight Compensation
• Power Supply: 12 VDC

SID-400P
Dome Color Camera with Zoom Lens

• 1/3" IT CCD-Chip
• Resolution: 480 TVL
• Sensitivity: 1.5 Lux
• Compact Design
• Integrated Varifocal Lens
• Optical Zoom x 2.25
• Lens Focal Length 4-9 mm
• PAL Composite Video Output
• Automatic Electronic Shutter
• Automatic White Balance
• Automatic Gain Control
• Backlight Compensation
• Power Supply: 12VDC/24VAC

ICD-608P
Dome Color Camera with Zoom Lens

• 1/3" IT CCD-Chip
• Resolution: 480 TVL
• Sensitivity: 1 Lux
• High Quality Picture
• Low Smear Level -110dB
• Aesthetic Appearance
• Integrated Varifocal Lens
• Optical Zoom x 2.3
• Lens Focal Length 2.6-6 mm
• PAL Composite Video Output
• Automatic Electronic Shutter
• Automatic Tracking White Balance
• Automatic Gain Control On/Off & Selectable
• Backlight Compensation On/Off & Level Adjustable
• Power Supply: 12 VDC / 24 VAC
• Specification

ICD-609P
High Performance Day/Night Dome Camera

• 1/3" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Resolution: 540TVL @Color & 570TVL @B&W
• Sensitivity: 0.8Lux/F1.2@Color&0.08Lux/F1.2@B&W
• True Day/Night Automatic Change-over Function
• High Quality Picture @ Low Smear Level -110dB
• Integrated Varifocal Lens
• Optical Zoom x 3.44 / x 2.44
• Focal Length 2.9-10 mm / 9-22 mm
• PAL Composite Video Output
• Automatic Gain Control (AGC)
• Automatic Electronic Shutter (AES)
• AES Range 1:2000 & On/Off Switchable
• Automatic Tracking Wide White Balance
• Backlight Compensation On/Off Switchable
• Power Supply: 12 VDC / 24 VAC
• Specification

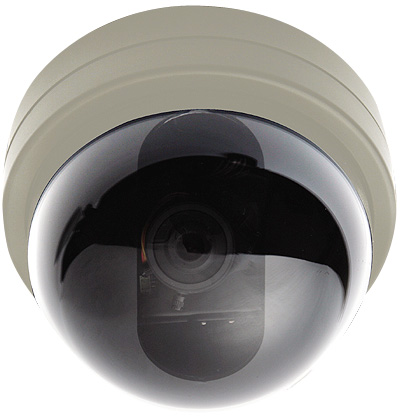

ISD-A30
Hyper Dynamic Dome Color Camera

• 1/3" PIXIM DPS Sensor with 720 (H) x 540 (V) Pixels
• Reproducing a Clear & Natural Image, No Vertical Smear
• Hyper Wide Light Dynamic Range, 36 Steps Level Adjust
• Electronic Sensitivity Control Function of up to x32 Times
• High Sensitivity: 0.8Lux\0.025Lux with setup x 32
• High Resolution: 480 TVL
• Integrated Varifocal Lens
• Optical Zoom x 2.3 / x 2.25 / x 2.44
• Focal Length 2.6-6mm / 4-9mm / 9-22mm
• PAL Composite Video Output
• Automatic Gain Control On/Off & Selectable
• Auto White Balance Selectable and Adjustable
• Backlight Compensation On/Off Switchable
• Power Supply: 12 VDC / 24 VAC
• Specification

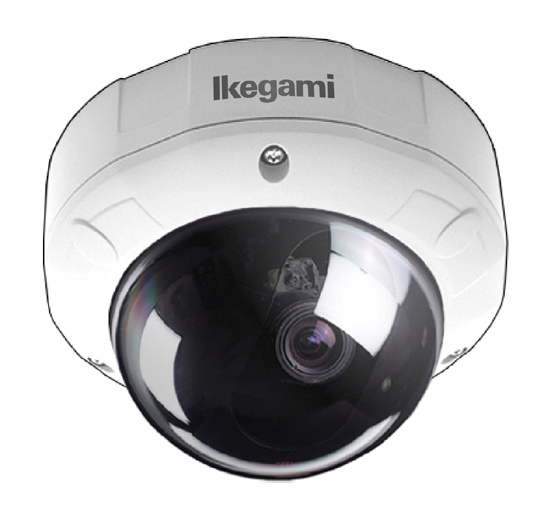

ISD-A35
Hyper Wide Light Dynamic Dome Color Camera

• 1/4" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Resolution: 480 TVL
• Sensitivity: 0.7Lux/F1.4@Color&0.01Lux/F1.4@B&W
• True Day/Night Automatic Change-over Function
• Fully Functional PTZ Dome Camera
• PTZ Various Preset Mode with 62 Presets Selectable
• Pan/Tilt Speed Range Selectable for precision Control
• Integrated Varifocal Lens with Auto/Manual Focus
• Optical Zoom x 18 / 26 / 36 & Digital Zoom x 12
• Lens Focal Length 4.1-73.8 / 3.5-91 / 3.4-122.4 mm
• PAL Composite Video Output
• Alarm 8ch Input & 1ch Output
• Auto/Manual Electronic Shutter 1/50-1/10,000 Sec
• Automatic Gain Control & Auto White Balance
• Video Effects: Freeze Frame, Auto Picture Flip,
  Privacy Zone Masking with 24 Positions
• Housing Protection: Vandal Resistance @ IP 67
• Camera Control via OSD Menu \ Remotely via RS-485
• Power Supply: 18V-28V AC / DC
• Specification

SID-600P
Dome Color Camera with Zoom Lens

• 1/4" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• Resolution: 480 TVL
• Sensitivity: 1.0 Lux / 0.01 Lux (Sense up x 128)
• Housing Protection: Vandal Resistance @ IP 66
• Resistant to Water, Dust, Shockproof, Vandalism
• Integrated Varifocal Lens
• Optical Zoom x12 & Digital Zoom x10
• Lens Focal Length 3.6-43.2 mm
• Alarm Output

• PAL Composite Video Output via BNC
• Automatic Electronic Shutter (AES)
• Shutter Speed Adjustable 8 Steps 1/50-1/10,000Sec
• Picture in Picture (PIP) Utility with Location Setting
• Motion Detection On/Off & Area Sensitivity Setting
• Automatic Gain Control & Auto White Balance
• Backlight Compensation & On/Off/Spot Switchable
• Camera Setup Remotely Controlled via RS-485 Port
• Power Supply: 12 VDC / 24 VAC
• Specification

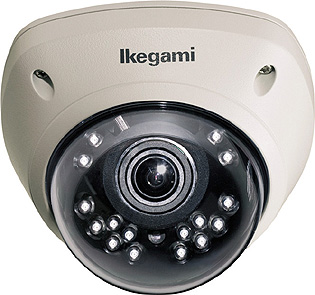

SID-605P-IR
Day/Night Dome Camera with Zoom Lens

• 1/3" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Resolution: 550TVL@Color & 600TVL@B&W
• Sensitivity: 0.1Lux/F1.2@Color&0.01Lux/F1.2@B&W
• Built-in Infra-Red (IR) 16 LEDs up to Distance of 15 m
• True Day/Night Automatic Change-over Function
• Integrated Varifocal Lens
• Optical Zoom x 2.5
• Lens Focal Length 3.8-9.5 mm
• PAL Composite Video Output
• Automatic Electronic Shutter 1/50 Sec
• Power Supply: 12 VDC
• Specification

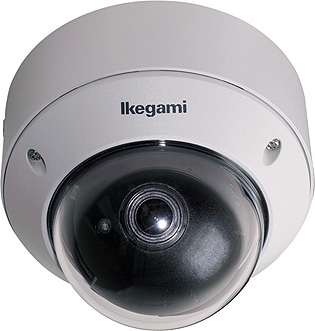

SID-635P-IR
Day/Night Dome Camera with Zoom Lens

• 1/3" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Resolution: 550TVL@Color & 600TVL@B&W
• Sensitivity: 0.1Lux/F1.2@Color&0.01Lux/F1.2@B&W
• True Day/Night Automatic Change-over Function
• Integrated Varifocal Lens
• Optical Zoom x 2.5
• Lens Focal Length 3.8-9.5 mm
• PAL Composite Video Output
• Camera Setup via OSD Menu
• Automatic Electronic Shutter 1/50 - 1/100,000 Sec
• Power Supply: 12 VDC / 24 VAC
• Specification

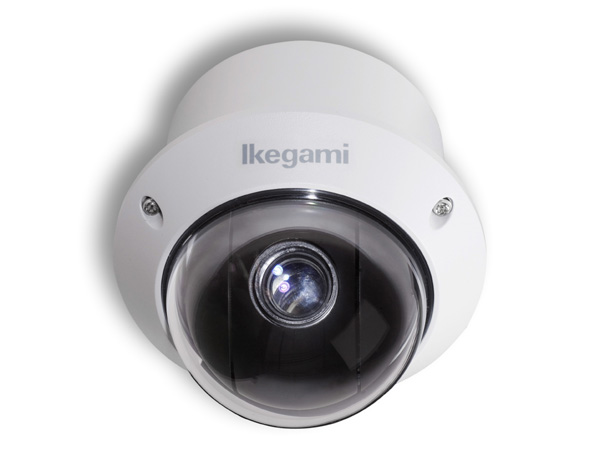

PCS-310P
Day/Night Mini-PTZ Dome Camera

• 1/4" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Resolution: 500 TVL
• Sensitivity: 0.7Lux/F1.2@Color&0.02Lux/F1.2@B&W
• True Day/Night Automatic Change-over Function
• Fully Functional Mini-PTZ Dome Camera
• Integrated Varifocal Lens with Auto Focus
• Optical Zoom x 10 & Digital Zoom x 10
• Lens Focal Length 3.8-38 mm
• PAL Composite Video Output
• Alarm 4ch Input & 1ch Output
• Housing Protection: Vandal Resistance @ IP 66
• Resistant to Water, Dust, Shockproof, Vandalism
• Camera Control via OSD Menu \ Remotely via RS-485
• Power Supply: 24VAC 50Hz
• Specification

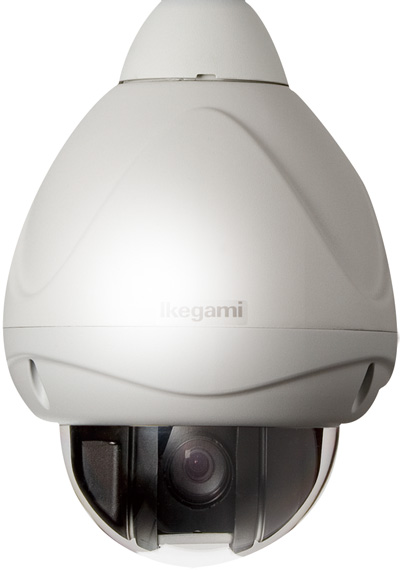

PCS-400P Series
Professional PTZ Dome Camera

• 1/4" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Resolution: 480 TVL
• Sensitivity: 0.7Lux/F1.4@Color&0.01Lux/F1.4@B&W
• True Day/Night Automatic Change-over Function
• Fully Functional PTZ Dome Camera
• PTZ Various Preset Mode with 62 Presets Selectable
• Pan/Tilt Speed Range Selectable for precision Control
• Integrated Varifocal Lens with Auto/Manual Focus
• Optical Zoom x 18 / 26 / 36 & Digital Zoom x 12
• Lens Focal Length 4.1-73.8 / 3.5-91 / 3.4-122.4 mm
• PAL Composite Video Output
• Alarm 8ch Input & 1ch Output
• Auto/Manual Electronic Shutter 1/50-1/10,000 Sec
• Automatic Gain Control & Auto White Balance
• Video Effects: Freeze Frame, Auto Picture Flip,
  Privacy Zone Masking with 24 Positions
• Housing Protection: Vandal Resistance @ IP 67
• Camera Control via OSD Menu \ Remotely via RS-485
• Power Supply: 18V-28V AC / DC
• Specification

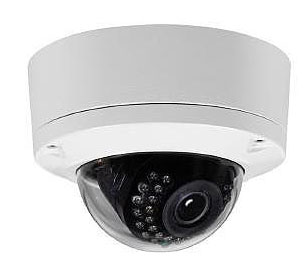

ICD-D1111
High Resolution 600TVL Vandal Resistant IR Dome Camera

• 1/3” Super HAD II CCD High Resolution of 600TV Lines
• NTSC Composite Video Output
• HLC (Highlight Compensation)
• DWDR (Digital Wide Dynamic Range)
• Built-in 2.8-11mm Auto Iris Varifocal Lens
• External Zoom & Focus Adjustment
• Intelligent Motion Detection
• Built-in 30 IR LEDs
• Smart IR LEDs: No Washed Out Image at Close Range
• Day/Night Function with ICR (Infrared Cut Filter Removal)
• Easy Menu Control via OSD (On Screen Display)
• IP66 Outdoor Housing (Vandal & Weather Resistant)
• 3-Axis Gimbal Bracket
• Power Supply: 12VDC / 24VAC
• Specification
