B&W Video Cameras

• ICD-34E – 1/3" CCD B&W Camera
• ICD-39E – 1/3" CCD B&W Camera
• ICD-47E – 1/2" CCD High Sensitivity IR B&W Camera
• ICD-47EG – 1/2" CCD High Sensitivity IR B&W Camera
• ICD-48E – 1/2" CCD Multi-Function DSP IR B&W Camera

ICD-34E
1/3" CCD B&W Camera

• 1/3" IT CCD-Chip with 512 (H) x 582 (V) Pixels
• Resolution: 380 TVL
• Sensitivity: 0.08 Lux / F1.2
• CCIR Composite Video Output via BNC
• Video / DC Auto IRIS Function
• Automatic Gain Control - On/Off Switchable
• Backlight Compensation - On/Off Switchable
• Mirror Image Function – NOR / INV Switchable
• Automatic Electronic Shutter (AES)
• AES Range 1:2000 & On/Off Switchable
  Max. 1/100,000 Sec
• Power Supply: 230 VAC 50Hz
• Specification

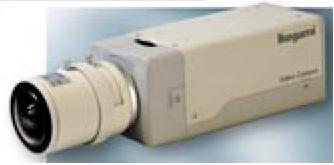

ICD-39E
1/3" CCD B&W Camera

• 1/3" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Sensitivity: 0.04 Lux / F1.2
• High Resolution: 560 TVL
• CCIR Composite Video Output via BNC
• Built-in Audio Microphone
• Video / DC Auto IRIS Function
• Automatic Electronic Shutter (AES)
• AES Range 1:2000 & On/Off Switchable
• Automatic Gain Control - On/Off Switchable
• Backlight Compensation - On/Off Switchable
• Power Supply: 12 VDC / 24 VAC

ICD-47E
1/2" CCD High Sensitivity IR B&W Camera

• 1/2" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Sensitivity: 0.015 Lux / F1.2
• High Resolution: 560 TVL
• CCIR Composite Video Output via BNC
• Infra-Red (IR) Sensitivity up to 950 nm
• Crisp Picture due to Smear Level -120dB
• Video / DC Auto IRIS Function
• Automatic Electronic Shutter (AES)
• AES Range 1:2000 & On/Off Switchable
• Automatic Gain Control - On/Off Switchable
• Backlight Compensation - On/Off Switchable
• Power Supply: 230 VAC 50Hz
• Specification
• Spectral Response

ICD-47EG
1/2" CCD High Sensitivity IR B&W Camera

• 1/2" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Sensitivity: 0.015 Lux / F1.2
• High Resolution: 560 TVL
• CCIR Composite Video Output via BNC
• Internal / External Sync via Genlock Input (BNC)
• Infra-Red (IR) Sensitivity up to 950 nm
• Crisp Picture due to Smear Level -120dB
• Video / DC Auto IRIS Function
• Automatic Electronic Shutter (AES)
• AES Range 1:2000 & On/Off Switchable
• Automatic Gain Control - On/Off Switchable
• Backlight Compensation - On/Off Switchable
• Shutter Speed Switchable 8 Steps 1/120 ~ 1/100,000 Sec
• Power Supply: 230 VAC 50Hz
• Specification
• Spectral Response

ICD-48E
Multi-Function DSP IR B&W Camera

• 1/2" IT CCD-Chip with 752 (H) x 582 (V) Pixels
• High Sensitivity: 0.0075 Lux / F1.2
• High Resolution: 560 TVL
• Digital Signal Processing (DSP) Produce Crisp Image
• High Quality Picture due to Smear Level -120dB
• Internal / External Sync via Genlock Input (BNC)
• CCIR Composite Video Output via BNC
• Infra-Red (IR) Sensitivity up to 950 nm
• Video / DC Auto IRIS Function
• Automatic Electronic Shutter (AES)
• AES Range 1:2000 & On/Off Switchable
• Automatic Gain Control - On/Off Switchable
• Backlight Compensation - On/Off Switchable
• Shutter Speed Manually Switchable 9 Steps
  1/50 ~ 1/100,000 Sec
• Camera Set-up via OSD Menu Control or
  Remotely via RS-485 Port
• Power Supply: 12 VDC / 24 VAC or 230 VAC 50Hz
• Specification
