Video & HD LCD Monitors

• ECO-SM560 – 5.6" Test & Service LCD Monitor
• VF700W – 7" High Performance IPS Monitor
• HLM-960WR – 9" High Performance LCD Monitor
• LCM-971 – 9.7" High Resolution TFT Color LCD Monitor
• LCD-15 – 15" High Resolution TFT Color LCD Monitor
• LCM-151 – 15" High Resolution TFT Color LCD Monitor
• LCM-171 – 17" High Resolution TFT Color LCD Monitor
• ULM-153 – 15" High Resolution TFT Color LCD Monitor
• ULM-173 – 17" High Resolution TFT Color LCD Monitor
• ULM-193 – 19" High Resolution TFT Color LCD Monitor
• ULM-204 – 20.1" High Performance TFT Color LCD Monitor
• ULE-185U – 18.5" High Performance TFT Color LCD Monitor
• ULE-217 – 21.5" High Performance TFT Color LCD Monitor
• LCM-320C – 32" High Performance Full HD LCD Monitor
• LCM-420A – 42" High Performance Full HD LCD Monitor

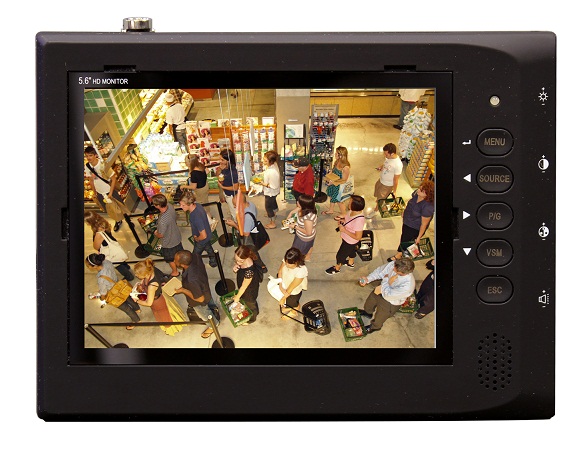

ECO-SM560
5.6" Test & Service LCD Monitor

• Resolution 640x480 Pixels
• 2 Composite Inputs A/B – NTSC/PAL (BNC),
  HDMI and PC Analog VGA/RGB (D-Sub)
• Built-in 1 Watt Speaker
• Test Pattern Generator
• OSD Menu
• Sun Visor
• Ni-Mh Rechargeable Batteries
• Power Supply: 12VDC/0.5A or 100-240 VAC 50/60Hz
• Specification

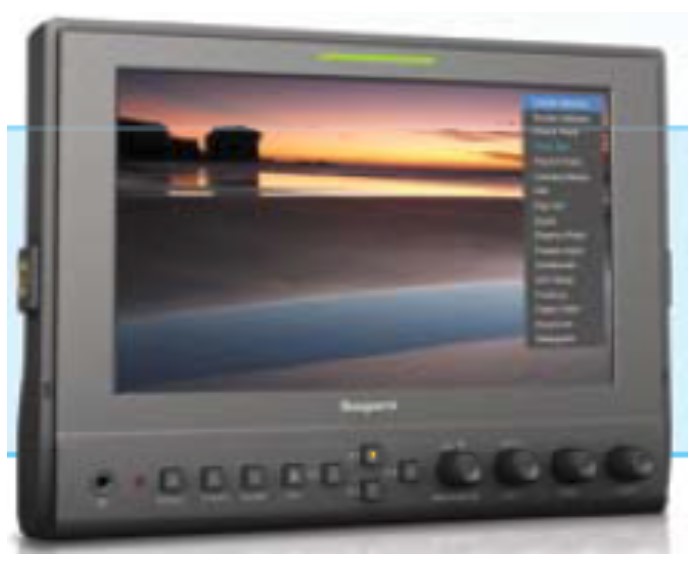

VF700W
7" High Performance IPS Monitor

• IPS Display Panel with LED Backlight
• High Resolution 1280x800 Pixels
• High Brightness 400 cd/m2
• Viewing Angle (H/V) 178'/178'
• Composite (CVBS) Input – NTSC/PAL (BNC), Component Inputs (YPbPr), HDMI and 3G/HD/SD-SDI
• OSD Menu
• PIP & Zoom
• Under Scan Function
• Freeze Input Function
• Center & Screen Markers
• Sunshade Hood
• Built-in Speaker
• Power Supply: 24VDC or 100-240 VAC 50/60Hz
• Optional Battery
• Specification

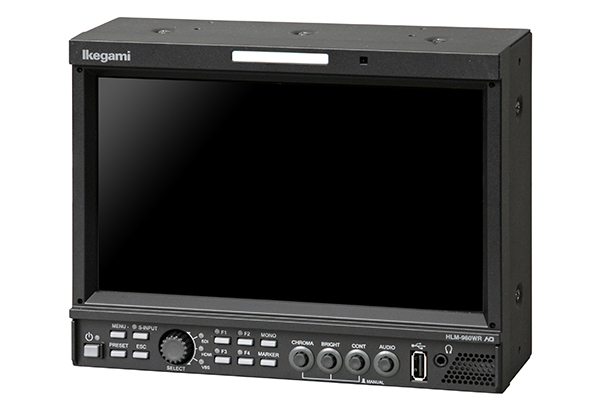

HLM-960WR
9" High Performance LCD Monitor

• Anti-reflection LCD Panel with LED Backlight
• High Resolution Full HD 1920x1080 Pixels
• High Brightness 400 cd/m2
• Viewing Angle (H/V) 178'/178'
• Composite (CVBS) Input – NTSC/PAL (BNC),
  HDMI and 2 or 4 Inputs of 3G/HD/SD-SDI
• OSD Menu
• Under Scan Function
• USB Port
• Aspect Ratio 16:9
• VITC & WFM Display
• Built-in Speaker
• Metal Cabinet
• Power Supply: 12VDC or 100-240 VAC 50/60Hz
• Optional Dual Rack Mount Adaptor
• Specification





LCM-971
9.7" High Resolution TFT Color LCD Monitor

• High Resolution 1024x768 Pixels
• High Brightness 300 cd/m2
• Viewing Angle (H/V) 178'/178'
• LED BLU (Back Light Unit) Display Monitor
• Built-in 2.5D Comb Filter & De-Interlace Function
• 2 Composite Inputs A/B – NTSC/PAL (BNC),
  S-Video (Y/C), HDMI and PC Analog RGB (D-Sub)
• Built-in 2 Watts x 2 Speakers
• Metal Cabinet
• Power Supply: 12VDC/1.5A or 100-240 VAC 50/60Hz
• Safety Standards: FCC, CE, RoHS
• Optional Under Scan Function
• Optional Dual Rack Mount Adaptor
• Specification

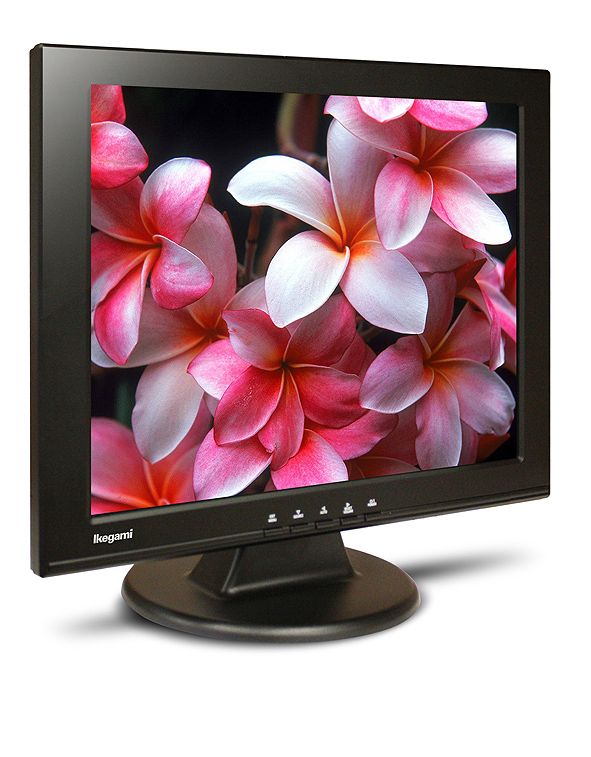

LCD-15
15" High Resolution TFT Color LCD Monitor

• High Resolution 1024x768 Pixels
• Composite Input – NTSC/PAL (BNC), S-Video (Y/C),
  HDMI and PC Analog VGA/RGB (D-Sub)
• OSD Menu
• LCD Protection Glass
• De-Interlace Function
• Built-in 1 Watt x 2 Speakers
• Power Supply: 12VDC/3A or 90-264 VAC 50/60Hz
• Safety Standards: FCC, CE, RoHS2
• Optional Rack Mount Adaptor
• Specification

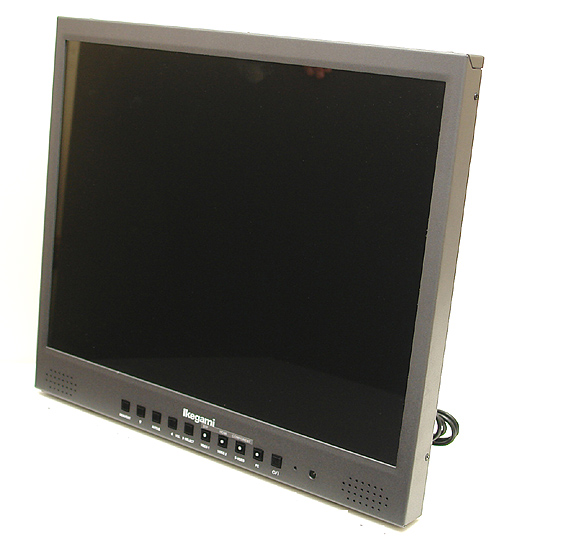

LCM-151
15" High Resolution TFT Color LCD Monitor

• High Resolution 1024x768 Pixels
• LCD Protection Glass
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs A/B – NTSC/PAL (BNC),
  HDMI and PC Analog RGB (D-Sub)
• Built-in 2 Watts x 2 Speakers
• Metal Cabinet
• Remote Controller included
• Power Supply: 12VDC/3A or 100-240 VAC 50/60Hz
• Safety Standards: FCC, CE, RoHS
• Optional Under Scan Function
• Optional Rack Mount Adaptor
• Specification


LCM-171
17" High Resolution TFT Color LCD Monitor

• High Resolution 1280x1024 Pixels
• LCD Protection Glass
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs A/B – NTSC/PAL (BNC),
  S-Video (Y/C) and PC RGB (D-Sub)
• Built-in 2 Watts x 2 Speakers
• Metal Cabinet
• Remote Controller included
• Power Supply: 12VDC/3.5A or 100-240 VAC 50/60Hz
• Safety Standards: FCC, CE, RoHS
• Optional Under Scan Function
• Optional Rack Mount Adaptor
• Specification


ULM-153
15" TFT Color LCD Monitor

• High Resolution 1024x768 Pixels / 550 TVL
• Brightness 250 cd/m2
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs A/B – NTSC/PAL (BNC),
  S-Video (Y/C) and PC Analog RGB (D-Sub)
• Built-in 2 Watts x 2 Speakers
• Remote Controller included
• Desk Top Stand as Standard
• Power Supply: 100-240 VAC 50/60Hz
• Safety Standards: CE, UL, FCC, RoHS
• Optional Tilt & Swivel VESA Wall Mount
• Specification

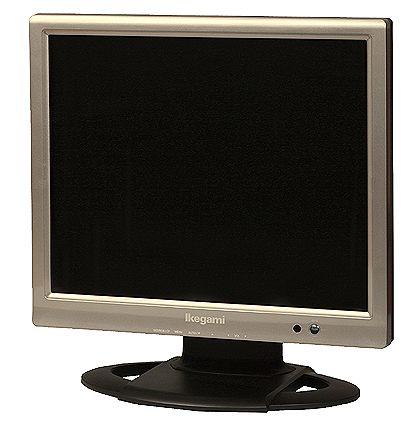

ULM-173
17" TFT Color LCD Monitor

• High Resolution 1280x1024 Pixels / 550 TVL
• Brightness 300 cd/m2
• LCD Protection Glass
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs A/B – NTSC/PAL (BNC),
  S-Video (Y/C) and PC Analog RGB (D-Sub)
• Built-in 2 Watts x 2 Speakers
• Remote Controller included
• Desk Top Stand as Standard
• Power Supply: 100-240 VAC 50/60Hz
• Safety Standards: CE, UL, FCC, RoHS
• Optional Tilt & Swivel VESA Wall Mount
• Specification



ULM-193
19" TFT Color LCD Monitor

• High Resolution 1280x1024 Pixels / 550 TVL
• Brightness 300 cd/m2
• LCD Protection Glass
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs A/B – NTSC/PAL (BNC),
  S-Video (Y/C) and PC Analog RGB (D-Sub)
• Built-in 2 Watts x 2 Speakers
• Remote Controller included
• Desk Top Stand as Standard
• Power Supply: 100-240 VAC 50/60Hz
• Safety Standards: CE, UL, FCC, RoHS
• Optional Tilt & Swivel VESA Wall Mount
• Specification

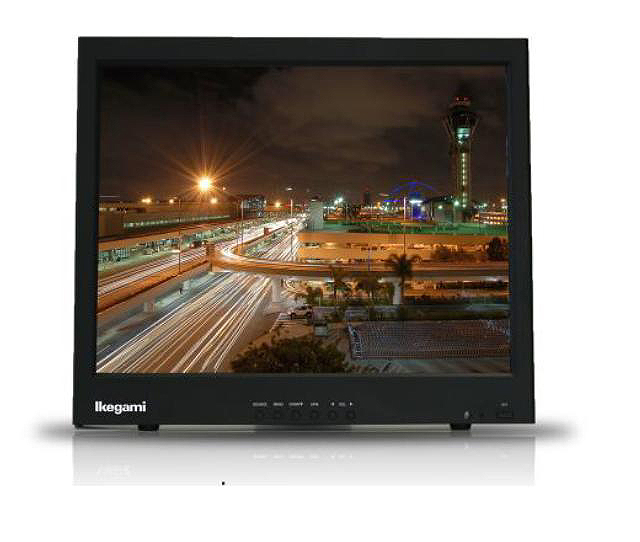

ULM-204
20.1" High Performance TFT Color LCD Monitor

• Ultra High Resolution 1600x1200 Pixels
• Brightness 300 cd/m2
• LCD Protection Glass
• Built-in 3D Comb Filter & De-Interlace Function
• Multi Display Function – PIP / PBP
• 2 Composite Inputs – NTSC/PAL (BNC), DVI,
  S-Video (Y/C), HDMI and PC Analog RGB (D-Sub)
• Viewing Angle (H/V) 178'/178'
• Built-in 2 Watts x 2 Speakers
• Metal Cabinet
• Remote Controller included
• Tilt Stand as Standard
• Power Supply: 12VDC/5A or 100-240 VAC 50/60Hz
• Safety Standards: CE, FCC, TUV
• Optional Rack Mount Adaptor
• Optional Tilt & Swivel VESA Wall Mount
• Specification

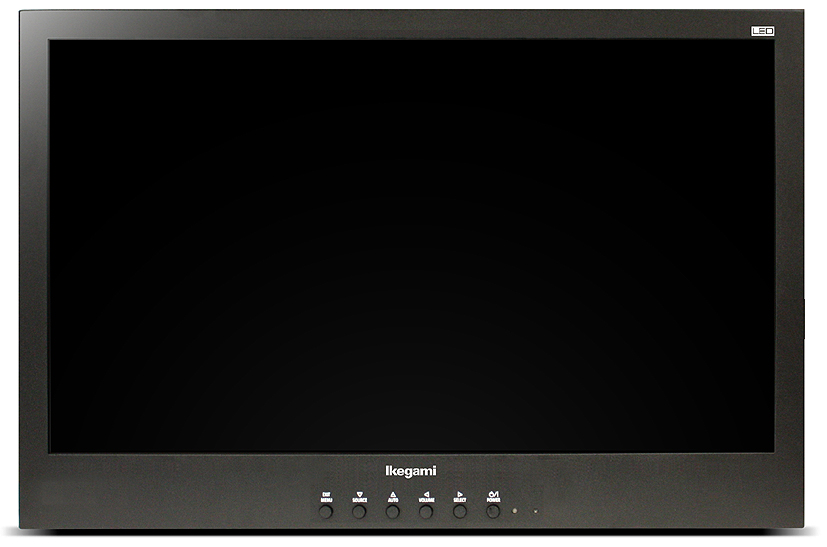

ULE-185U
18.5" High Performance TFT Color LCD Monitor

• High Resolution 1366x768 Pixels
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs A/B – NTSC/PAL (BNC), 2 HDMI, 3G/HD/SD-SDI, DVI-D, S-Video (Y/C), Component Inputs and PC Analog RGB (D-Sub)
• OSD Menu
• LED Backlight
• Under Scan Function
• Wireless Remote Control
• Non-Glare Surface Coating
• PIP/PBP Multi Display Function
• Viewing Angle (H/V) 170'/170'
• Metal Cabinet
• Desk Top Stand Included
• Built-in 4 Watts x 2 Speakers
• Built to Run Continuously 24x7x365
• Power Supply: 12VDC/3.3A or 100-240 VAC 50/60Hz
• Safety Standards: FCC, CE, RoHS
• Optional Rackmount Ears Adaptor
• Specification

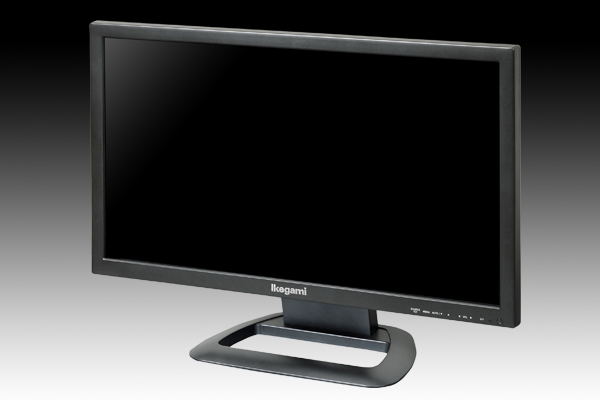

ULE-217
21.5" High Performance TFT Color LCD Monitor

• High Resolution Full HD 1920x1080 Pixels
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs A/B – NTSC/PAL (BNC), HDMI, 3G/HD/SD-SDI, DVI-D and PC RGB (D-Sub)
• OSD Menu
• LED Backlight
• Under Scan Function
• Wireless Remote Control
• Desk Top Stand Included
• Viewing Angle (H/V) 170'/160'
• Anti Reflection Protection Panel
• Multi Display Function PIP/PBP/VOV
• Built-in 2 Watts x 2 Speakers
• Power Supply: 12VDC/1.8A or 100-240 VAC 50/60Hz
• Safety Standards: FCC, CE, RoHS
• Optional Rackmount Adaptor
• Specification


LCM-320C
32" High Performance Full HD LCD Monitor

• High Resolution Full HD 1920x1080 Pixels
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs – NTSC/PAL (BNC), DVI-D,
  2 HDMI, S-Video (Y/C), Component Inputs and
  PC Analog RGB (D-Sub)
• OSD Menu
• Metal Cabinet
• Brightness 400 cd/m2
• Wireless Remote Control
• Viewing Angle (H/V) 178'/178'
• PIP/PBP Multi Display Function
• Built-in 7.5 Watts x 2 Speakers
• Remote Controller included
• Desk Top Stand as Standard
• Power Supply: 100-240 VAC 50/60Hz
• Safety Standards: FCC, CB, CE
• Optional VESA Wall Mount & Ceiling Mount
• Specification

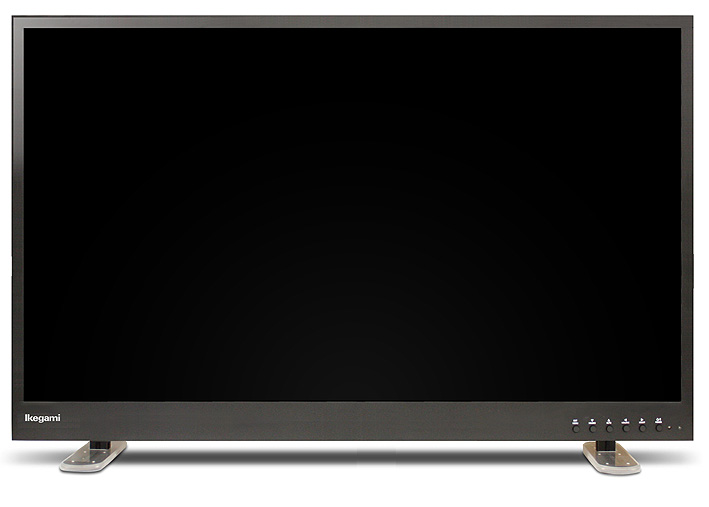

LCM-420A
42" High Performance Full HD LCD Monitor

• High Resolution Full HD 1920x1080 Pixels
• Built-in 3D Comb Filter & De-Interlace Function
• 2 Composite Inputs – NTSC/PAL (BNC), DVI-D,
  2 HDMI, S-Video (Y/C), Component Inputs and
  PC Analog RGB (D-Sub)
• OSD Menu
• Metal Cabinet
• Brightness 350 cd/m2
• Wireless Remote Control
• Viewing Angle (H/V) 178'/178'
• PIP/PBP Multi Display Function
• Built-in 7.5 Watts x 2 Speakers
• Remote Controller included
• Desk Top Stand as Standard
• Power Supply: 100-240 VAC 50/60Hz
• Safety Standards: FCC, CB, CE
• Optional VESA Wall Mount & Ceiling Mount
• Specification
