Digital Video Recorders (DVR)

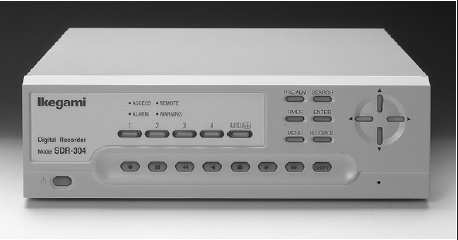

- 4ch Video Input / Output & 1ch Audio Input / Output
- Recording and Playback of 4 Asynchronous Camera Video
- Pre-Alarm Function Starts Recording before Alarm Event
- Quad Screen for 4 Camera Video of Real Motion at once
- Video Monitor Output 2ch Composite (BNC)
- 80GB / 120GB HDD Internal Storage Device
- Live Display Resolution 704(H) x 286(V)
- Real Time Recording 25fps
- M-JPEG Video Compression
- Multiplexer Friendly Interface
- 10/100 Base-T Ethernet Interface
- User Friendly Viewer Software
- Serial Interface via RS-232C
- Specification
- 4ch / 8ch /16ch Video Input / Output (Loop- through)
- 4ch / 8ch /16ch Audio Input & 1ch Output
- Video Monitor Output 2ch Composite (BNC),
S-Video (Y/C) and PC RGB / VGA (D-Sub)
- Hardware MPEG 4 Compression
- Live Display Resolution 720 (H) x 576(V)
- Live Display Speed 100 fps / 200 fps / 400 fps
- Simple User Friendly Design Control Panel
- Full Remote Control Capability over Network via LAN / WAN / Internet / PSTN or SDR Viewer Software
- Interfacing to External Devices via USB2.0 / RS-232C / RS-422 / Ethernet (10/100 Base-T)
- Internal Storage Devices CD-RW & HDD 320GB / 640GB / 960GB
- PTZ Dome Camera Control via SDR Viewer Software
- Alarm 4ch / 8ch / 16ch Input & 2ch Output
- Power Supply: 100-240 VAC 50/60Hz
- Safety Standard: CE
- Specification
- 8ch /16ch Video Input / Output (Loop- through)
- 8ch /16ch Audio Input & 1ch Output
- Video Monitor Output 2ch Composite (BNC),
S-Video (Y/C) and PC RGB / VGA (D-Sub)
- Hardware MPEG 4 Compression
- Live Display Resolution 720 (H) x 576(V)
- Live Display Speed 200 fps / 400 fps
- Simple User Friendly Design Control Panel
- Full Remote Control Capability over Network via LAN / WAN / Internet / PSTN or SDR Viewer Software
- Interfacing to External Devices via USB2.0 / RS-232C / RS-485 / Ethernet (10/100 Base-T)
- Internal Storage Devices DVD-RW & HDD 320GB / 640GB / 960GB
- PTZ Dome Camera Control via SDR Viewer Software
- Alarm 8ch / 16ch Input & 4ch Output
- Power Supply: 100-240 VAC 50/60Hz
- Safety Standard: CE
- Specification

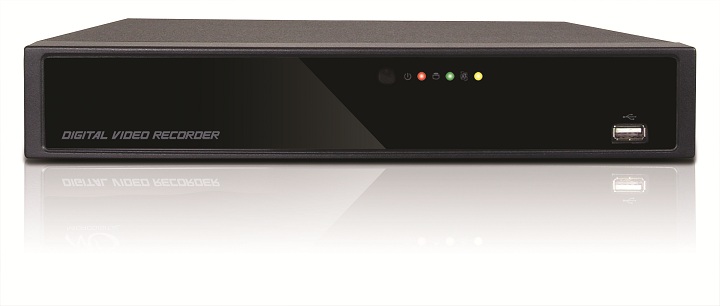

- 4 Channel, TRUE H.264 ( SDR-104-1TB )
- 8 Channel, TRUE H.264 ( SDR-108-1TB )
- 16 Channel, TRUE H.264 ( SDR-116-1TB )
- 4ch / 8ch /16ch Composite Video Input via BNC
- Auto Scanning System NTSC / PAL
- High Security DVR, No Visible Controls
- High Resolution up to 720 (H) x 576(V)
- Recording Frame Rate up to 480 fps
- BNC Video Output, VGA Monitor Output
- 1 SPOT Output
- True H.264 Video Compression
- ADPCM (16 bit) Audio Compression
- Remote Controller included
- Built-in 1TB HDD (2TB Option)
- Client Software (CMS), Web Access
- Embedded Linux Operating System
- POS / ATM 1 + 2 (Optional)
- 1ch Audio Input / 1ch Audio Output
- USB Mouse Included
- PTZ, 2 ch ALARM supported
- Interfacing to External Devices via 3x USB /
- RS-232C / RS-422/485 / Ethernet 10/100 Mbps
- Works with iPhone, Blackberry, Android, MS Mobile
- DVR Control via Keypad / Mouse / Remote Control
- Power Supply: 12VDC or 100-240 VAC 50/60Hz
- Optional IR Remote Control ( RC-SDR )
- Optional Rackmount Ears ( SARACK-S )
- Specification

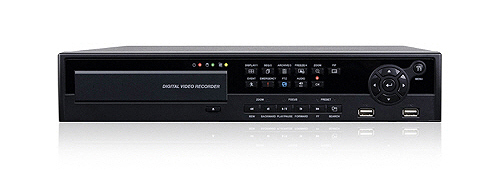

- 4 Channel, TRUE H.264 ( SDR-304-1TB )
- 8 Channel, TRUE H.264 ( SDR-308-1TB )
- 16 Channel, TRUE H.264 ( SDR-316-1TB )
- 4ch / 8ch /16ch Composite Video Input via BNC
- Auto Scanning System NTSC / PAL
- High Resolution up to 720 (H) x 576(V)
- Recording Frame Rate up to 480 fps
- BNC Video Output, VGA Monitor Output
- 1 SPOT Output
- True H.264 Video Compression
- ADPCM (16 bit) Audio Compression
- Remote Controller included
- Built-in Storage Devices DVD-RW & 1TB HDD (2TB / 4TB Option)
- Client Software (CMS), Web Access
- Embedded Linux Operating System
- POS / ATM 1 + 3 (Optional)
- 1ch Audio Input / 1ch Audio Output
- USB Mouse Included
- PTZ, 4 ch ALARM supported
- Interfacing to External Devices via 4x USB / RS-232C / RS-422/485 / Ethernet 10/100 Mbps
- Works with iPhone, Blackberry, Android, MS Mobile
- DVR Control via Keypad / Mouse / Remote Control
- Power Supply: 12VDC or 100-240 VAC 50/60Hz
- Optional IR Remote Control ( RC-SDR )
- Optional Rackmount Ears ( SARACK-S )
- Specification

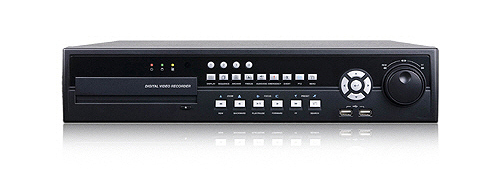

- 4 Channel, TRUE H.264 ( SDR-604-1TB )
- 8 Channel, TRUE H.264 ( SDR-608-1TB )
- 16 Channel, TRUE H.264 ( SDR-616-1TB )
- 4 / 8 /16 ch Composite Video Input via BNC
- Auto Scanning System NTSC / PAL
- High Resolution up to 720 (H) x 576(V)
- Recording Frame Rate up to 480 fps
- BNC Video Output, VGA Monitor Output
- 3 SPOT Output, 4 / 8 / 16 Looping Outputs
- True H.264 Video Compression
- ADPCM (16 bit) Audio Compression
- Remote Controller included
- Built-in Storage Devices DVD-RW & 1TB HDD (2TB / 6TB Option)
- Client Software (CMS), Web Access
- Embedded Linux Operating System
- POS / ATM 1 + 3 (Optional)
- 4 / 8 /16 ch Audio Input / 1ch Audio Output
- USB Mouse Included
- PTZ, 4 / 8 /16 ch ALARM supported
- Interfacing to External Devices via 4x USB / RS-232C / RS-422/485 / Ethernet 10/100 Mbps
- Works with iPhone, Blackberry, Android, MS Mobile
- DVR Control via Keypad / Mouse / Remote Control
- Power Supply: 12VDC or 100-240 VAC 50/60Hz
- Optional IR Remote Control ( RC-SDR )
- Optional Rackmount Ears ( SARACK-S )
- Specification

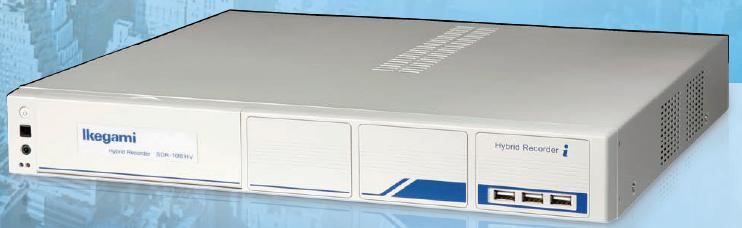

- 8 ch DVR with 500GB HDD (SDR-108HV)
- 16 ch DVR with 1TB HDD (SDR-116HV)
- 8 /16 ch IP or Analog Composite Video
- Hybrid Video Recording of IP & Analog Signals
- H.264 / MPEG-4 / M-JPEG Video Compression
- Auto Scanning System NTSC / PAL
- IP Recording Resolution up to 1280x1024
- Analog Recording Resolution up to 720x576
- Recording Frame Rate up to 240 / 480 fps
- BNC Video Output, VGA Monitor Output
- 2 SPOT Monitor Output
- 8 / 16 Looping Outputs via BNC
- Remote Controller included
- Built-in Storage Devices HDD & DVD-RW
- eSATA Port & up to 4 SATA HDD Supported
- Graphical User Interface for ease of operation
- Embedded Linux Operating System
- Full Remote Control Capability
- 8 /16 ch Audio Input / 1ch Audio Output
- Touch Screen Control Interface
- Motion Detection Function
- E-MAP Function
- USB Mouse Included
- PTZ Control supported
- Interfacing to External Devices via 3x USB / RS-232C / RS-485 / Ethernet 10/100 Mbps
- DVR Setup via Control Panel / Mouse / Remote Control
- Power Supply: 12VDC or 100-240 VAC 50/60Hz
- Specification

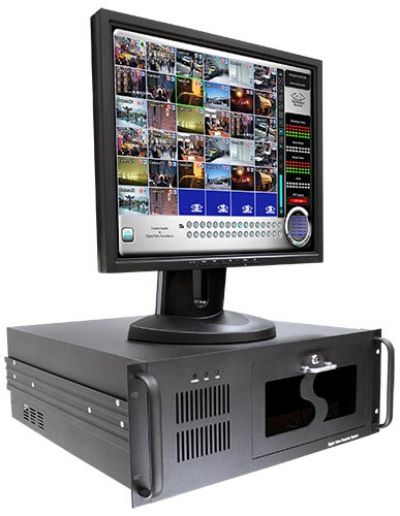

- 32 Channel Video Input
- 16 Channel Audio Input
- 960 Fps Display Frame rate
- 480 Fps Recording Frame rate
- D1 / Half-D1 / CIF Resolution
- Screen Setup of Channels displayed
- Recording Frame Rate up to 480 fps
- H.264 High Video Compression CODEC
- Built-in Storage Devices HDD & DVD-RW
- HDD Installation available up to 4 TB HDD
- SPOT Monitor Output (ch. selectable on setup)
- Various Recording Mode & Data Search Mode
- Central Management Software (CMS) included
- Backup Method by DVD-RW / USB / Network via CMS
- Pentaplex Operation (Live / Recording / Playback / Network / Backup)
- Client software is compatible with Microsoft Windows Vista & Windows 7
- Software included – Server & Client & Backup Viewer & CMS
- Rack Mount Server Chassis
- PTZ Control supported
- Works with iPhone
- Specification

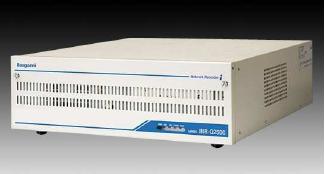

- 32 Channel IP Network DVR
- Recording HD & SD Compressed Video & Audio
- Recording H.264 and Motion JPEG compression data
- Simultaneously recording for maximum 32 units of
Network Cameras and Encoders
- Key component of H.264 IP camera system
- Image Format Resolution up to 1920x1080
- Recording Frame Rate up to 960 fps
- Superior image quality and scalability
- Embedded Linux Operating System
- Screen Setup of Channels displayed
- WEB / DHCP / HTTP / NTP Server Function
- Various Recording Mode & Data Search Mode
- Network Interfacing via Ethernet at 10/100/1000 Mbps
- Built-in Storage Device RAID HDD of 1TB (2TB Option)
- Viewer software available for live imaging and playback
- Specification
