Color Video Monitors

• CMK-1400H – 14" High Resolution Color CRT Monitor
• VCM-1501 – 15" High Resolution Color CRT Monitor
• CMK-2170 – 21" High Performance Color CRT Monitor
• CMF-2180 – 21" Flat Color CRT Monitor

CMK-1400H
14" Color CRT Monitor

• High Resolution 650 TVL
• Sharp Picture
• Auto Scanning System: NTSC/EIA-RS170 & PAL/CCIR
• 1ch Composite In/Out via BNC
• 1ch Component RGB H+V Inputs via BNC
• 1ch Y/C (S-VHS) Input
• Sync: Composite H+V and Sync on Green
• Metal Cabinet
• Power Supply: 90-260 VAC 50/60Hz
• Safety Standard: CE
• Optional Under Scan Function

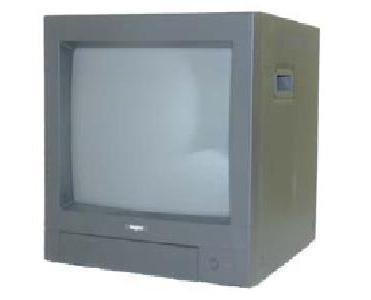

VCM-1501
15" Color CRT Monitor

• High Resolution 700 TVL
• Sharp Picture
• Auto Scanning System: NTSC/EIA-RS170 & PAL/CCIR
• 2ch Composite In/Out via BNC (Loop- through)
• 1ch Y/C (S-VHS) In/Out (Loop- through)
• 2ch Audio In/Out
• Built-in Speaker
• Metal Cabinet
• Power Supply: 100-240 VAC 50/60Hz
• Safety Standards: CE, UL, FCC, DHHS
• Optional Under Scan Function
• Optional Rack Mount Kit
• Specification

CMK-2170
21" Color CRT Monitor

• High Resolution of more than 450 TVL
• Sharp Picture
• Auto Scanning System: NTSC/EIA-RS170 & PAL/CCIR
• 2ch Composite Video In/Out via BNC (Loop- through)
• 1ch Y/C (S-VHS) In/Out (Loop- through)
• 3ch Audio In/Out
• Built-in Speaker
• Metal Cabinet
• Power Supply: 100-240 VAC 50/60Hz
• Safety Standard: CE
• Optional Under Scan Function
• Specification

CMF-2180
21" Flat Color CRT Monitor

• Resolution 500 TVL
• Auto Scanning System: NTSC/EIA-RS170 & PAL/CCIR
• 4ch Composite Video Inputs via BNC (Auto termination)
• Manual or Automatic Select of 1 / 2 / 3 / 4 Video Inputs
• Auto-timer with Adjustable Switching Interval 2-10 Sec
• 1ch Video VCR / DVR Input
• 1ch Video Output (Loop- through)
• 4ch Audio Inputs & 1ch Audio Output
• Build-in 4 Inputs Automatic Switcher
• Built-in 1.5 Watts Speaker
• Metal Cabinet
• OSD - Menu Control (On Screen Display)
• Power Supply: 100-240 VAC 50/60Hz
• Safety Standard: CE
• Optional Under Scan Function
• Specification
